Replacing a standard gas range or older electric radiant coil stove with a modern electromagnetic induction range offers rapid heating response, precise simmer control, and superior indoor air quality. However, induction cooking demands substantial electrical service capacity. Understanding branch circuit sizing, wire gauge constraints, and service panel headroom is essential before purchasing an appliance.
1. Principles of Induction and Power Ratings

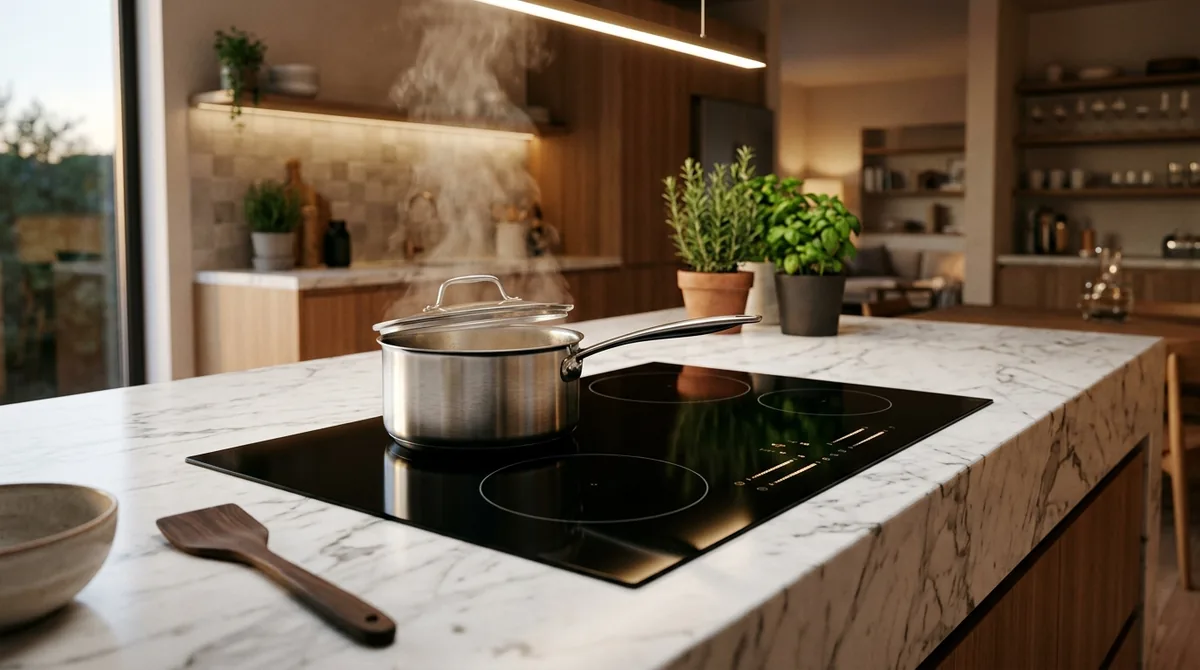

Induction cooktops do not heat a surface element. Instead, copper coils beneath a ceramic-glass plate generate high-frequency alternating magnetic fields (typically 20 kHz to 50 kHz). When ferromagnetic cookware is placed on the zone, eddy currents and magnetic hysteresis induce thermal resistance directly inside the cookware base.
- Drop-In Cooktops (30-inch / 36-inch): Power consumption ranges from 7.2 kW to 11.1 kW with all zones active on boost.
- Freestanding Induction Ranges (Cooktop + Oven): Total connected load typically spans 9.6 kW to 14.8 kW.
- Power Sharing / Management: Many induction units dynamically throttle power between paired front and rear cooking zones when both operate simultaneously at maximum power.
2. Dedicated Branch Circuit and Conductor Specifications
The National Electrical Code (NEC) and harmonized standards mandate dedicated branch circuits for major residential cooking appliances. Sizing depends on the appliance nameplate rating:
| Appliance Nameplate Rating | Minimum Breaker Rating | Recommended Copper Conductor (NM-B Cable) | Grounding Conductor |
|---|---|---|---|
| Up to 7.7 kW (240V) | 40 Amperes (2-Pole) | 8 AWG Copper (75°C insulation) | 10 AWG Bare Copper |
| 7.8 kW to 12.0 kW (240V) | 50 Amperes (2-Pole) | 6 AWG Copper (75°C insulation) | 10 AWG Bare Copper |
| Exceeding 12.0 kW (240V) | 60 Amperes (2-Pole) | 4 AWG Copper (75°C insulation) | 10 AWG Bare Copper |
Note on Aluminum Conductors: If aluminum or copper-clad aluminum wiring is utilized, conductors must increase by one or two wire gauge sizes (e.g., 4 AWG aluminum for a 50A breaker), and terminal lugs must be explicitly rated AL/CU with anti-oxidant paste.
3. Electrical Service Panel Load Calculation (NEC Article 220)
Before installing a 40A or 50A dual-pole breaker, an electrician must calculate existing residential load:
- Main Service Capacity: Homes with 100-ampere main service panels frequently lack adequate headroom if electric water heaters, central air conditioning, and electric dryers are already installed. A 200-ampere main panel upgrade is often advisable.
- Four-Wire vs. Three-Wire Receptacles: Modern installations require a 4-conductor circuit (two hots, one insulated neutral, and one grounding conductor) terminating in a NEMA 14-50R receptacle. Existing 3-prong (NEMA 10-50R) legacy circuits lack a dedicated equipment ground and should be updated during substantial kitchen remodels.
- Local Disconnect Access: In kitchen layouts where the range cord is inaccessible behind heavy cabinetry, local building codes may require a lockable disconnect or line-of-sight panel access.
