The typical residential local area network (LAN) hosts an unmanaged mix of personal laptops, smartphones, network-attached storage (NAS), and dozens of inexpensive Internet of Things (IoT) gadgets such as smart light bulbs, IP security cameras, robotic vacuums, and smart plugs. Consumer IoT devices frequently run outdated embedded Linux firmware, contain hardcoded credentials, and rarely receive security patches. Placing these devices on the same flat subnet as sensitive workstations invites lateral network intrusion.
1. Network Segmentation Architecture: The Multi-VLAN Topology

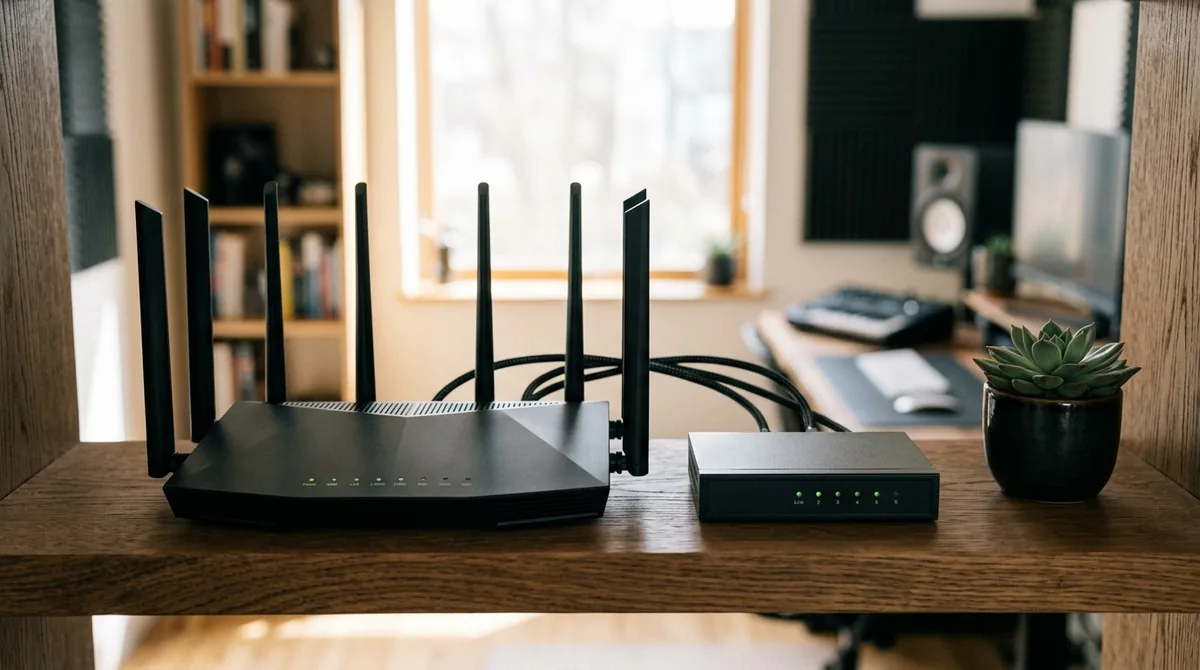

Segmenting a home network requires a router and managed Ethernet switches supporting IEEE 802.1Q Virtual Local Area Networks (VLANs), alongside wireless access points supporting multiple SSIDs mapped to individual VLAN tags.
A resilient residential segmentation scheme utilizes three distinct logical zones:
| VLAN ID | Subnet CIDR | Assigned SSID Name | Typical Devices | Access Permissions |
|---|---|---|---|---|
| VLAN 10 (Trusted) | 192.168.10.0/24 | HomeSecure | Laptops, desktop PCs, smartphones, personal NAS | Full WAN (Internet) + one-way initiation to IoT VLAN |
| VLAN 20 (IoT) | 192.168.20.0/24 | SmartHome-IoT | Smart plugs, thermostats, robot vacuums, TV streamers | WAN only; strictly isolated from Trusted LAN |
| VLAN 30 (Guest) | 192.168.30.0/24 | Guest-WiFi | Visitor devices, untrusted temporary hardware | WAN only; client isolation enabled |
By segregating broadcast domains, a compromised security camera cannot inspect ARP tables or port-scan a workstation on the trusted subnet.
2. Firewall Rules: Establishing Unidirectional Access
Configuring separate VLANs alone does not block traffic; routers inherently route between attached subnets unless explicit firewall filter rules are established.
The golden rule of IoT segmentation is unidirectional connection state tracking:
- Rule 1 (Allow Established & Related): Permit traffic from the IoT VLAN (192.168.20.0/24) to the Trusted VLAN (192.168.10.0/24) only if the connection state is
ESTABLISHEDorRELATED. - Rule 2 (Drop Invalid States): Immediately drop any packet originating from the IoT subnet with connection state
INVALID. - Rule 3 (Block IoT-to-Trusted Initiation): Explicitly drop all traffic originating from the IoT VLAN interface destined for the Trusted VLAN interface where connection state is
NEW. - Rule 4 (Allow Trusted-to-IoT): Permit all traffic originating from the Trusted VLAN destined for the IoT VLAN.
Under this rule set, your smartphone on the Trusted VLAN can initiate communication with a local media receiver or smart thermostat, and the device can reply. However, if malware on the thermostat attempts to initiate a new TCP connection toward your laptop or NAS, the router firewall immediately drops the packets.
3. Multicast DNS (mDNS) and Cross-Subnet Discovery
Isolating IoT devices often breaks discovery protocols like Apple AirPlay, Google Cast, and HomeKit, which rely on local link multicast (multicast DNS on IP 224.0.0.251 and UDP port 5353).
To restore cross-subnet device control:
- Enable mDNS Repeater / Reflector: Install an mDNS proxy (such as Avahi) on your router to repeat discovery advertisements between VLAN 10 and VLAN 20 without bridging the subnets.
- Targeted Port Whitelisting: If a specific controller requires direct local streaming, create discrete firewall allow rules restricted to specific static IP addresses and ports rather than opening entire subnets.
